MITSUBISHI ELECTRIC PUHY-P450YSNW-A External Unit Next Stage Generation BIG Y Series - 50 kW
CUSTOM OPTIONS

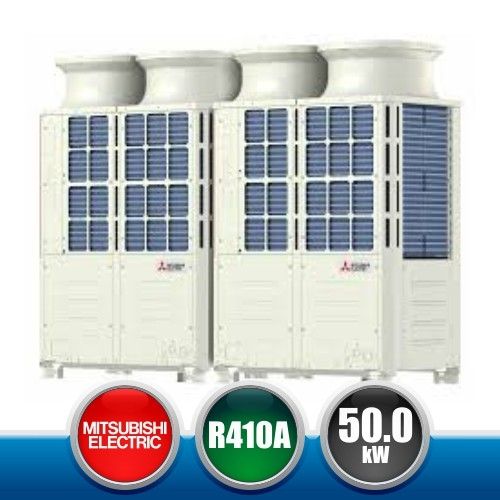

Mitsubishi Electric PUHY-P450YSNW-A outdoor unit, belonging to the City Multi VRF Next Stage Generation BIG Y Series, of 50 kW in R410A air-cooled heat pump with 2 DC Scroll Inverter compressors with three-phase power supply.
Continuous heating function with partitioning of the battery with the new function of dynamic evaporation temperature control for greater energy efficiency.
This unit is composed by:
- PUHY-P200YNW-A > VRF Outdoor Unit Next Stage Generation STD Y Series - 22.4 kW;
- PUHY-P250YNW-A > VRF Outdoor Unit Next Stage Generation STD Y Series - 28 kW;
- CMY-Y100VBK3 > Coupling Joint for Outdoor Units Y/WY Series.
Complies with ErP18 and ErP21, EUROVENT certification.
Index of internal units that can be connected: 39 units.
Nominal capacity in cooling: 50 kW.
Nominal capacity in heating: 56 kW.
Dimensions (HxLxP): 1858x1240x740 mm.
Sound pressure: 62 dB (A).
ATTENTION: FULL RISK STD start-up service mandatory.
| Dimensions (LxHxD mm) | 1840x1858x740 |
|---|---|
| Weight (Kg) | n.d. |
| Power supply | Tensione/Freq./Fasi (V/Hz/n°) 400/50/3 |
| Supply | Three-Phase |
| Max. Indoor Units | 39 |
| Refrigerant Gas | R410A |
| Sound pressure level (dB) | 62 |
Our staff is qualified and experienced and it has all the necessary equipment to design and install any air conditioning systems to perfection.
Our technicians are in fact equipped with refrigeration license, as required by law, and perform regular refresher courses directly from the parent companies; therefore they are familiar with all the characteristics of the products sold on Shopclima.it in order to provide professional, qualified and guaranteed technical support.
Please feel free to contact us for more information or a customized quote.
Elettrodomex Srl guarantees the good quality of the products for sale on Elettrodomex.it and it is responsible to the consumer for any lack of conformity existing at the time of delivery of the goods. Elettrodomex Srl undertakes, during the warranty period specified below, to repair (at its warehouse) or replace as soon as possible those parts or products that prove defective, provided that this does not depend on breakages or failures caused by incompetence or negligence of the customer, lack of maintenance, use outside the technical specifications or purposes of use, fortuitous events or major force.
The warranty period is 24 months from the invoice date (12 months for professional buyers and users), therefore any lack of conformity must be reported within 24 months after the date of purchase (12 months for professional buyers and users). The time limit within which the defect of the product must be communicated from the moment it is manifested is 2 months.
The lack of conformity can be found for malfunction, manufacturing defect, discrepancy between what was sold and what was received by the Customer
The warranty will apply to products that show conformity defects or faults not found or found at the time of purchase, provided they have been used correctly and in compliance with their destination and as required by any technical documents. The warranty will not be applied in case of negligence and carelessness from the customer, as well as mechanical or electronic changes not prescribed by the manufacturer.
For any further information regarding our order guarantees, contact us.
CAN'T FIND A SPARE PARTS?
No problem, just ask our staff. It is a totally free service.
