ATLANTIC ACV Solar Plant Configuration with HELIO Plan 2.0 Collectors

Welcome to the page dedicated to the configuration of your solar palnt with Atlantic ACV HELIO Plan 2.0 collectors. By following the instructions at the bottom of the page you can compose your system in just a few minutes.

As low as €757.00

  CUSTOM OPTIONS

ATLANTIC ACV Solar Plant Configuration with HELIO Plan 2.0 Collectors is available to buy in increments of 1
Order now for delivery between 25 February and 6 March
Customize ATLANTIC ACV Solar Plant Configuration with HELIO Plan 2.0 Collectors
ACV 709538 Helio Plan 2.0 Flat Solar Collector - Net Absorbent Surface 1.84 sqm   + €757.00

* Required Fields

ATLANTIC ACV Solar Plant Configuration with HELIO Plan 2.0 Collectors is available to buy in increments of 1
Your Customization
ATLANTIC ACV Solar Plant Configuration with HELIO Plan 2.0 Collectors
ATLANTIC ACV Solar Plant Configuration with HELIO Plan 2.0 Collectors

In stock

€757.00

Summary
  • 1. Collettori Solari Helio Plan 2.0 (scegli la quantità):
    1 x ACV 709538 Helio Plan 2.0 Flat Solar Collector - Net Absorbent Surface 1.84 sqm

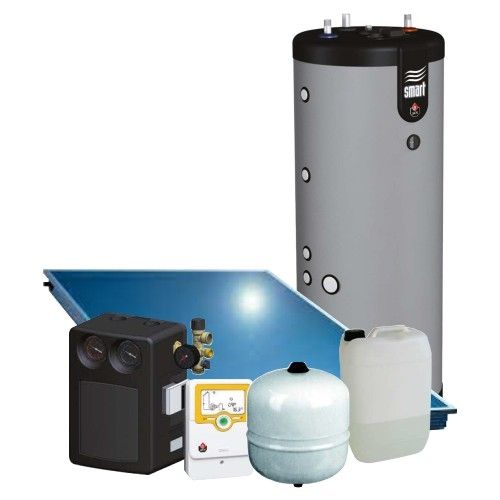

On this page you can configure your solar plant with Atlantic ACV HELIO Plan 2.0 collectors.

Solar systems can be sized according to the members of a family that will benefit from them. Therefore the advice is to follow the following tips:

  • 2/3 people > 1x Helio Plan 2.0 flat solar collector + 1x 200 liter Smart ME 200 Kettle;
  • 3/4 people > 2x Helio Plan 2.0 flat solar collectors + 1x 300 liter Smart ME 300 Kettle;
  • 4/5 people > 3x Helio Plan 2.0 flat solar collectors + 1x 400 liter Smart ME 400  Kettle;
  • 6/8 people > 4x Helio Plan 2.0 flat solar collectors + 1x 600 liter Smart ME 600 Kettle.

Helio Plan 2.0 flat solar collectors, for vertical and horizontal installations, are equipped with a 3.2 mm thick tempered solar glass cover: inside there is a highly selective aluminum absorber and an aluminum containment tank. with anodized aluminum profiles and EPDM rubber gaskets with galvanized corner joints. Thermal insulation is guaranteed by a 40 mm thickness of high density rock wool. With a total surface area of ​​2.02 m2 and a net absorbent of 1.84 m2, the solar panels are easy to install thanks to the various complete mounting kits.

The operation of the collector is guaranteed for 10 years thanks to the high quality of the construction materials and the construction know-how confirmed by tests certified in accordance with EN 12975.

It is also important to keep in mind that the hydraulic connection kits allow for simple installation by connecting up to 6 collectors in series. In the case of more than 6 units, the collectors are connected together as a combination of series and in parallel. As for the bracket kits, the high-quality, weather-resistant mounting profiles are arranged from left to right.

COMPOSE YOUR SYSTEM IN A FEW STEPS
you must select an option for each point *

  1. Choose the number of collectors that best suits your needs:
    • 1
    • 2
    • 3
    • 4
    • 5
    • 6

  2. Choose the hydraulic connection kit according to the installation configuration between:
    • horizontal
    • vertical

  3. Choose the Smart ME multi-energy kettle that can be integrated between the models:
    • Smart ME 200 - 200 Liters
    • Smart ME 300 - 300 Liters
    • Smart ME 400 - 400 Liters
    • Smart ME 600 - 600 Liters

  4. Choose the bracket kit among:
    • over-roof installation for roof tiles (horizontal installation)
    • over-roof installation for roof tiles (vertical installation)
    • over-roof installation with stud (horizontal installation)
    • over-roof installation with stud (vertical installation)
    • integrated installation on the roof with roof tiles (vertical installation)
    • integrated installation on the roof with slate tile (vertical installation)
    • flat roof installation with 45° brackets (horizontal installation)
    • flat roof installation with 45° brackets (vertical installation)

  5. Choose the expansion vessel among the models:
    • Hydro Expansion Tank 12 Liters
    • Hydro Expansion Tank 18 Liters
    • Hydro Expansion Tank 25 Liters
    • Hydro Expansion Tank 35 Liters
    • Hydro Expansion Tank 50 Liters
    • Hydro Expansion Tank 80 Liters
    • Hydro Expansion Tank 100 Liters
    • Hydro Expansion Tank 150 Liters

  6. Choose the accessories for the adjustment and the hydraulic units:
    • Solar Unit 100 Control Unit for HELIO Plan 2.0 Collectors (with 2 PT 1000 probes)
    • PT 1000 Probe for Solar Circuits for HELIO Plan 2.0 collectors
    • Overvoltage Protection Box for HELIO Plan 2.0 Collectors
    • Solar Group 100 ERP Hydraulic Unit for HELIO Plan 2.0 Collectors (surface up to 20 m2)
    • Solar Group 40 ERP Hydraulic Unit for HELIO Plan 2.0 Collectors (surface up to 40 m2)

  7. Choose the accessories for the solar circuits:
    • 1/2" Solar Mix Adjustable Thermostatic Mixer for HELIO Plan 2.0 Collectors
    • 3/4" Solar Mix Adjustable Thermostatic Mixer for HELIO Plan 2.0 Collectors
    • Solar Fluid Antifreeze Liquid for HELIO Plan 2.0 Collectors - 10 Liters


* for example, for point 4 only one bracket kit must be selected from the 8 available configurations.
